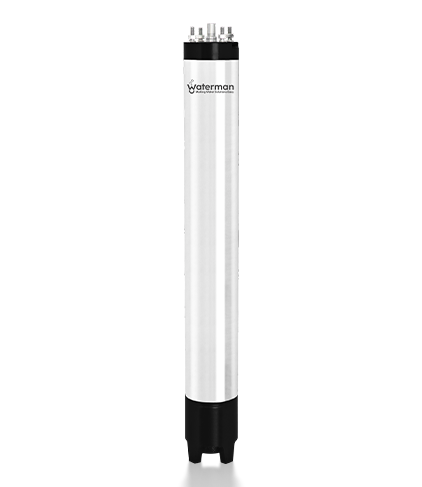

4” Single Piece CI Design Motor

4” Single Piece CI Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Base : CI FG 200 AS PER IS:210 (Qty: 1)
  • Cover for Motor Base : SS 304 (Qty: 1)
  • Diaphragm : Nitrile Rubber (Qty: 1)
  • Jacket for Lower Housing : SS 304 (Qty: 1)
  • Thrust Bearing : SS 420 (Qty: 1)
  • Revolving Plate : CI + Carbon (Qty: 1)
  • Lower Housing : CI FG 200 AS PER IS:210 (Qty: 1)
  • Counter Thrust Ring : PVC (Qty: 1)
  • Stator Circlip : Spring Steel (Qty: 2)
  • Lower Flange : MS with CED Coating (Qty: 1)
  • Lower Collar : MS (Qty: 1)
  • Stator Tube : SS 304 (Qty: 1)
  • Stator Stamping Stack : CRNO M47/50SP660 (Qty: 1)
  • Rotor Stamping Stack : CRNO M47/50SP660 (Qty: 1)
  • Copper Ring : Electro Grade Copper (Qty: 8)
  • Balancing Ring : CI FG 200 AS PER IS:210 (Qty: 3)
  • Upper Collar : MS (Qty: 1)
  • Bush : GM LTB-4 (Qty: 4)
  • Upper Housing : CI FG 200 AS PER IS:210 (Qty: 1)
  • Upper Flange : MS with CED Coating (Qty: 1)
  • Oil Seal : Nitrile Rubber (Qty: 2)
  • Upper Housing Cover : SS 304 (Qty: 1)
  • Oil Seal Cover : SS 410 AS PER IS:1570 (V) (Qty: 1)
  • Stud (M8) : SS 304 (Qty: 4)
  • Sand Guard : Nitrile Rubber (Qty: 1)
  • Drain Plug (1/4" BSP) with O-Ring : Brass (Qty: 2)
  • Stud (M6) : SS 304 (Qty: 4)
  • Nut (M6) : SS 304 (Qty: 4)
  • Washer (M6) : SS 304 (Qty: 4)
  • O'Ring : Nitrile Rubber (Qty: 4)
  • Rotor Shaft : SS 420 H/T/SS 431 (Qty: 1)
  • Rotor Circlip : Spring Steel (Qty: 1)
  • Revolving Plate Key : SS 410 AS PER IS:1570 (V) (Qty: 1)
  • Wooden Stick : Chill Wood (Qty: 24)
  • Copper Rod : Electro Grade Copper (Qty: 22)
  • Allen Bolt (M6) : SS 304 (Qty: 3)
  • Grub Screw (M5) : SS 202 (Qty: 1)
  • Motor Cap : PVC (Qty: 1)
  • Motor Winding Cap : PVC (Qty: 2)
  • Cable : -- (Qty: 3 Meter)
  • Winding Wire : Copper + Polywrap (Qty: --)
  • End Lamination : MS (Qty: 2)
  • Grommet : Nitrile Rubber (Qty: 1)
  • Cable Clip : SS 304 (Qty: 1)
  • Screw (M5) : SS 304 (Qty: 2)
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial water supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
SR. NO. PART DESCRIPTION MOC QTY.
1 MOTOR BASE PLATE SS 304 1
2 DIAPHRAGM NITRILE RUBBER 1
3 DIAPHRAGM SPRING SS 304 1
4 DIAPHRAGM SPRING CAP PVC 1
5 NUT (M6) SS 304 4
6 WASHER (M6) SS 304 4
7 O’RING NITRILE RUBBER 1
8 STUD (M6) SS 304 4
9 ROCKER (M18) SS 304 1
10 SCREW (M5) SS 304 6
11 DRAIN PLUGE (5/16") BRASS 1
12 MOTOR BASE CI FG 200 AS PER IS:210 1
13 THRUST BEARING SS 420 1
14 ROTOR CIRCLIP SPRING STEEL 1
15 REVOLVING PLATE CI FG 260 + CARBON 1
16 LOWER HOUSING CI FG 200 AS PER IS:210 1
17 COUNTER THRUST RING TEFLONE 1
18 STATOR CIRCLIP SPRING STEEL 2
19 LOWER FLANGE MS WITH CED COATING 1
20 BUSH GM LTB-4 4
21 LOWER COLLAR MS 1
22 BALANCING RING CI FG 200 AS PER IS:210 2
23 END LAMINATION MS 8
24 COPPER RING ELECTRO GRADE COPPER 1
25 STATOR STAMPING STACK CRNO M47/50SP6650 1
26 ROTOR STAMPING STACK CRNO M47/50SP6960 1
27 STATOR TUBE SS 304 1
28 ROTOR SHAFT SS 420 HT/SS 431 1
29 UPPER COLLAR MS 1
30 UPPER FLANGE MS WITH CED COATING 1
31 UPPER HOUSING CI FG 200 AS PER IS:210 1
32 OIL SEAL NITRILE RUBBER 2
33 TOP SEAL COVER SS 410 AS PER IS:1570 PART (V) 1
34 SAND GUARD NITRILE RUBBER 1
35 STUD (M8) SS 304 4
36 GROMMET NITRILE RUBBER 1
37 CABLE CLIP SS 202 2
38 COPPER ROD ELECTRO GRADE COPPER 22
39 WOODEN STICK CHILL WOOD 1
40 REVOLVING PLATE KEY SS 410 AS PER IS:1570 PART (V) 1
41 ALLEN BOLT (M6) SS 304 4
42 GRUB SCREW (M5) SS 202 2
43 MOTOR KEY CAP PVC 1
44* MOTOR WINDING CAP PVC 1
45* CABLE — 3 Meter
47 WINDING WIRE COPPER + POLYWRAP —

NOTE: W4-4" MOTOR, SP - SINGLE PHASE, TP- THREE PHASE, CI-CAST IRON

Sr. No. Part Description MOC Qty.
1 Motor Base CI FG 200 AS PER IS:210 1
2 Cover for Motor Base SS 304 1
3 Diaphragm Nitrile Rubber 1
4 Jacket for Lower Housing SS 304 1
5 Thrust Bearing SS 420 1
6 Revolving Plate CI + Carbon 1
7 Lower Housing CI FG 200 AS PER IS:210 1
8 Counter Thrust Ring PVC 1
9 Stator Circlip Spring Steel 2
10 Lower Flange MS with CED Coating 1
11 Lower Collar MS 1
12 Stator Tube SS 304 1
13 Stator Stamping Stack CRNO M47/50SP660 1
14 Rotor Stamping Stack CRNO M47/50SP660 1
15 Copper Ring Electro Grade Copper 8
16 Balancing Ring CI FG 200 AS PER IS:210 3
17 Upper Collar MS 1
18 Bush GM LTB-4 4
19 Upper Housing CI FG 200 AS PER IS:210 1
20 Upper Flange MS with CED Coating 1
21 Oil Seal Nitrile Rubber 2
22 Upper Housing Cover SS 304 1
23 Oil Seal Cover SS 410 AS PER IS:1570 (V) 1
24 Stud (M8) SS 304 4
25 Sand Guard Nitrile Rubber 1
26 Drain Plug (1/4" BSP) with O-Ring Brass 2
27 Stud (M6) SS 304 4
28 Nut (M6) SS 304 4
29 Washer (M6) SS 304 4
30 O'Ring Nitrile Rubber 4
31 Rotor Shaft SS 420 H/T/SS 431 1
32 Rotor Circlip Spring Steel 1
33* Revolving Plate Key SS 410 AS PER IS:1570 (V) 1
34* Wooden Stick Chill Wood 24
35* Copper Rod Electro Grade Copper 22
36* Allen Bolt (M6) SS 304 3
37* Grub Screw (M5) SS 202 1
38* Motor Cap PVC 1
39* Motor Winding Cap PVC 2
40* Cable -- 3 Meter
41* Winding Wire Copper + Polywrap --
42* End Lamination MS 2
43* Grommet Nitrile Rubber 1
44* Cable Clip SS 304 1
45* Screw (M5) SS 304 2

NOTE: "ITEMS NOT SHOWN IN DRAWING

SR. NO. PART DESCRIPTION MOC QTY.
1 NUT (M6) SS 304 4
2 WASHER (M6) SS 304 4
3 O’RING NITRILE RUBBER 1
4 STUD (M6) SS 304 4
5 SCREW (M5) SS 304 6
6 MOTOR BASE PLATE SS 304 1
7 DIAPHRAGM SPRING SS 304 1
8 DIAPHRAGM SPRING CAP PVC 1
9 DIAPHRAGM NITRILE RUBBER 1
10 MOTOR BASE CI FG 200 AS PER IS:210 1
11 ROCKER (M18) SS 304 1
12 THRUST BEARING CI FG 260 + SS 420 1
13 REVOLVING PLATE CI FG 260 + CARBON 1
14 COUNTER THRUST RING TEFLONE 1
15 LOWER HOUSING CI FG 200 AS PER IS:210 1
16 BUSH GM LTB-4 4
17 STATOR CIRCLIP SPRING STEEL 2
18 LOWER FLANGE MS WITH CED COATING 1
19 ROTOR CIRCLIP SPRING STEEL 1
20 REVOLVING PLATE KEY SS 410 AS PER IS:1570 PART (V) 1
21 ROTOR SHAFT SS 420 HT/SS 431 1
22 BALANCING RING CI FG 200 AS PER IS:210 2
23 ROTOR STAMPING STACK CRNO M47/50SP660 1
24 COPPER RING ELECTRO GRADE COPPER 8
25 LOWER COLLAR MS 1
26 STATOR TUBE SS 304 1
27 UPPER COLLAR MS 1
28 UPPER FLANGE MS WITH CED COATING 1
29 UPPER HOUSING CI FG 200 AS PER IS:210 1
30 DRAIN PLUGE (5/16") BRASS 1
31 GROMMET NITRILE RUBBER 1
32 CABLE CLIP SS 202 4
33 STUD (M8) SS 304 4
34 OIL SEAL NITRILE RUBBER 2
35 TOP SEAL COVER SS 410 AS PER IS:1570 PART (V) 1
36 SAND GUARD NITRILE RUBBER 1
37 ALLEN BOLT (M6) SS 304 4
38* END LAMINATION MS 8
39* STATOR STAMPING STACK CRNO M47/50SP660 1
40* COPPER ROD ELECTRO GRADE COPPER 22
41* WOODEN STICK CHILL WOOD 1
42* GRUB SCREW (M5) SS 202 2
43* MOTOR KEY CAP PVC 1
44* MOTOR WINDING CAP PVC 1
45* CABLE --- 3 Meter
46* WINDING WIRE COPPER + POLYWRAP —

NOTE: ITEMS NOT SHOWN IN DRAWING
