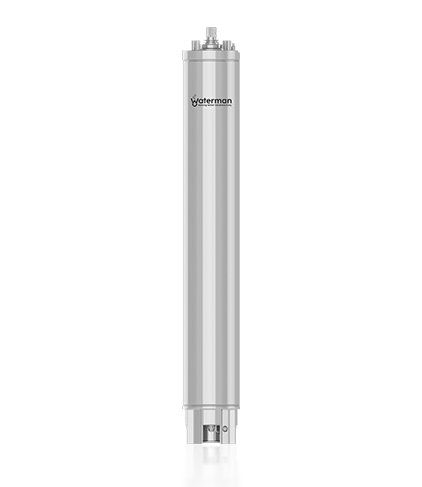

6” Single Piece SS Design Motor

6” Single Piece SS Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment with Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : Sintered Impregnated Carbon
  • Seal : Nitrile Rubber + Carbon + Ceramic + SS 304
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper Housing Cover & Motor Base : SS304 IC
  • Rewindable
  • Degree of Protection : IP 68
  • Max Water Temperature : 35° C
  • Nos. of Start per Hour : Max 20 at regular intervals
  • Voltage Variation : +6% / -10% at rated voltage
  • Motor Cable Length : 3.0 meters (3 core)
  • Mounting : NEMA Standards Vertical
  • Power Range :
    • Three Phase : 2.2 kW – 37 kW
    • AC Three Phase Operating Voltage Band : 300 – 415 V , 50Hz
  • Speed : 2900 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
  • De-watering
  • Fire Fighting
Model KW HP Motor Length (mm)
W6TP0030H5SS 2.2 3 620.9
W6TP0040H5SS 2.9 4 640.9
W6TP0050H5SS 3.7 5 665.9
W6TP0060H5SS 4.4 6 700.9
W6TP0075H5SS 5.5 7.5 750.9
W6TP0100H5SS 7.5 10 765.9
W6TP0125H5SS 9.3 12.5 790.9
W6TP0150H5SS 11 15 840.9
W6TP0175H5SS 13 17.5 880.9
W6TP0200H5SS 15 20 970.9
W6TP0250H5SS 18.5 25 1040.9
W6TP0300H5SS 22 30 1120.9
W6TP0350H5SS 26 35 1170.9
W6TP0400H5SS 30 40 1195.9
W6TP0500H5SS 37 50 1315.9

NOTE: W6-6" MOTOR, TP-THREE PHASE, SS-STAINLESS STEEL (FULL SS)

Sr. No. Part Description MOC Qty.
1 SCK Screw (M5) SS 410 As Per IS:1570 Part (V) 4
2 Motor Base Plate SS 410 As Per IS:1570 Part (V) 1
3 Diaphragm Nitrile Rubber 1
4 Diaphragm Spring SS 202 1
5 Diaphragm Spring Cap PVC 1
6 Threaded Rocker (16MM) SS 410 As Per IS:1570 Part (V) 1
7 Thrust Bearing CI FG 260 As Per IS:210 + SS 420 1
8 Revolving Plate CI FG 260 As Per IS:210 + Carbon 1
9 End Ring SS 410 As Per IS:1570 Part (V) 1
10 Stator Circlip Spring Steel EN-42J 1
11 Lower Flange MS With CED Coating 1
12 Lower Housing CI FG 200 As Per IS:210 1
13 Carbon Bush Sintered Impregnated Carbon 4
14 Winding Cap PVC 2
15 Stator Tube SS 304 1
16 Stator Stamping With End Lamination CRNO M47/50SP660 1
17 Rotor Stamping CRNO M47/50SP660 1
18 Rotor Shaft SS 420 HT Up To 450SL
SS 431 Above 450SL 		1
19 Copper Ring Electro Grade Copper 8
20 Balancing Ring CI FG 200 As Per IS:210 2
21 Upper Housing CI FG 200 As Per IS:210 1
22 Upper Flange MS With Zinc Plated 1
23 Mechanical Seal Carbon + Ceramic 1
24 Grommet Nitrile Rubber 1
25 Cable Electrograde Copper + PVC 3 Meter
26 Cable Clip SS 410 As Per IS:1570 Part (V) 1
27 Upper Cover SS 304 1
28 Stud (M12) SS 304 4
29 Oil Seal Nitrile Rubber 1
30 Sand Guard Cover SS 410 As Per IS:1570 Part (V) 1
31 Sand Guard Nitrile Rubber + MS 1
32 Allen Bolt (M8) SS 304 4
33 Screw (M5) SS 304 4
34 Cable Clip SS 410 As Per IS:1570 Part (V) 2
35 ¼” BSP Drain Plug With O'ring Brass + Nitrile Rubber 1
36 Copper Ring Electro Grade Copper 30
37 Stud (M10) SS 304 4
38 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
39 Rotor Circlip Spring Steel EN42-J 1
40 Motor Base Nitrile Rubber 1
41 Washer (M10) SS 304 4
42 Nut (M10) SS 304 4
43 Gasket Polytetrafluoroethylene (PTFE) 2
44 Bolt (CSK) (M5) SS 304 3
45 Grub Screw (M5) SS 304 4
46 O'ring Nitrile Rubber 4
47 Revolving Plate Key SS 410 As Per IS:1570 Part (V) 1
48 Wooden Stick Chill Wood 24
49 Slot Paper EM6 24
Sr. No. Part Description MOC Qty.
1 Sck Screw (M5) SS 410 As Per IS:1570 Part (V) 4
2 Motor Base Plate SS 410 As Per IS:1570 Part (V) 1
3 Diaphragm Spring SS 202 1
4 Diaphragm Spring Cap PVC 1
5 Dome Nut (M10) SS 304 4
6 Washer (M10) SS 304 4
7 O'Ring Nitrile Rubber 1
8 Diaphragm Nitrile Rubber 1
9 Stud (M10) SS 304 4
10 Threaded Rocker (M22) SS 410 As Per IS:1570 Part (V) 1
11 Motor Base CI FG 200 As Per IS:210 1
12 Gasket Polytetrafluoroethylene (PTFE) 2
13 Thrust Bearing CI FG 260 As Per IS:210 + SS 420 1
14 Revolving Plate CI FG 260 As Per IS:210 + Carbon 1
15 Bolt (CSK) (M5) SS 304 3
16 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
17 Lower Housing CI FG 200 As Per IS:210 1
18 O'Ring Nitrile Rubber 2
19 Carbon Bush Sintered Impregnated Carbon 4
20 Lower Flange MS With Zinc Plated 1
21 Stator Circlip Spring Steel EN-42J 1
22 Winding Cap PVC 2
23 Revolving Plate Key SS 410 As Per IS:1570 Part (V) 1
24 Rotor Shaft SS 420 HT Up To 450SL, SS 431 Above 450SL 1
25 Balancing Ring CI FG 200 As Per IS:210 2
26 Grub Screw (M5) SS 304 2
27 Copper Ring Electro Grade Copper 8
28 Rotor Stamping CRNO M47/Hybrid 50SP660 1
29 Stator Tube SS 304 1
30 End Ring SS 410 As Per IS:1570 Part (V) 2
31 Upper Flange MS With Zinc Plated 1
32 Upper Housing CI FG 200 As Per IS:210 1
33 Mechanical Seal Carbon + Ceramic 1
34 Grommet Nitrile Rubber 1
35 Cable Clip SS 410 As Per IS:1570 Part (V) 1
36 Cable Electrograde Copper + PVC 3 Meter
37 Allen Bolt (M8) SS 304 4
38 Oil Seal Nitrile Rubber 1
39 Sand Guard Cover SS 410 As Per IS:1570 Part (V) 1
40 Sand Guard Nitrile Rubber + MS 1
41 Stud (M12) SS 304 4
42 ¼” BSP Drain Plug With O’Ring Brass + Nitrile Rubber 1
43 O'Ring Nitrile Rubber 2
44 Winding Polywrap —
45 Stator Stamping With End Lamination CRNO M47/Hybrid 50SP660 1
46 Laminate — —
47 Cable Electrograde Copper + PVC 3 Meter
48 Copper Rod Electro Grade Copper 30
49 Wooden Stick Chill Wood 24
50 Slot Paper EM6 24

NOTE: ITEMS NOT SHOWN IN DRAWING
