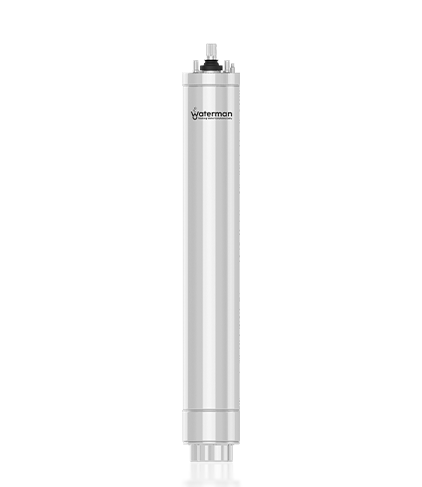

6” Single Piece SS Cladding Design Motor

6” Single Piece SS Cladding Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment with Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : Sintered Impregnated Carbon
  • Seal : Nitrile Rubber + Carbon + Ceramic + SS 304
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper & Lower Bearing Housing : CI FG 200 with CED Coating
  • Covered with SS304 Jacket
  • Rewindable
  • Degree of Protection : IP 68
  • Max Water Temperature : 35° C
  • Nos. of Start per Hour : Max 20 at regular intervals
  • Voltage Variation : +6% / -10% at rated voltage
  • Motor Cable Length : 3.0 meters (3 core)
  • Mounting : NEMA Standards Vertical
  • Power Range :
    • Three Phase : 2.2 kW – 37 kW
    • AC Three Phase Operating Voltage Band : 300 – 415 V , 50Hz
  • Speed : 2900 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
  • De-watering
  • Fire Fighting
Model KW HP Motor Length (mm)
W6TP0030H5SSCL 2.2 3 627.9
W6TP0040H5SSCL 2.9 4 647.9
W6TP0050H5SSCL 3.7 5 672.9
W6TP0060H5SSCL 4.4 6 707.9
W6TP0075H5SSCL 5.5 7.5 757.9
W6TP0100H5SSCL 7.5 10 772.9
W6TP0125H5SSCL 9.3 12.5 797.9
W6TP0150H5SSCL 11 15 847.9
W6TP0175H5SSCL 13 17.5 887.9
W6TP0200H5SSCL 15 20 977.9
W6TP0250H5SSCL 18.5 25 1047.9
W6TP0300H5SSCL 22 30 1127.9
W6TP0350H5SSCL 26 35 1177.9
W6TP0400H5SSCL 30 40 1202.9
W6TP0500H5SSCL 37 50 1322.9

NOTE: W6-6" MOTOR, TP-THREE PHASE, SSCL: STAINLESS STEEL CLADDING

Sr. No. Part Description MOC Qty.
1 Motor Base Cover SS 304 1
2 Diaphragm Spring SS 202 1
3 Diaphragm Nitrile Rubber 1
4 Diaphragm Spring Cap PVC 1
5 Motor Base Jacket SS 304 1
6 Motor Base CI FG 200 AS PER IS:210 1
7 Threaded Rocker (16MM) SS 410 AS PER IS:1570 PART (V) 1
8 Allen Bolt (M10) SS 304 4
9 Thrust Bearing CI FG 260 AS PER IS:210 + SS 420 1
10 Revolving Plate CI FG 260 AS PER IS:210 + Carbon 1
11 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
12 Lower Flange MS WITH CED Coating 1
13 Stator Tube SS 304 1
14 Lower Housing CI FG 200 AS PER IS:210 1
15 Carbon Bush Sintered Impregnated Carbon 4
16 Balancing Ring CI FG 200 AS PER IS:210 2
17 Stator Stamping with End Lamination CRNO M47/50SDP660 1
18 Rotor Stamping CRNO M47/50SDP660 1
19 Rotor Shaft SS 420 HT UP TO 450SL / SS 431 ABOVE 450SL 1
20 Copper Rod Electro Grade Copper 30
21 Copper Ring Electro Grade Copper 8
22 Winding Wire Polywrap —
23 Winding Cap PVC 2
24 Upper Housing CI FG 200 AS PER IS:210 1
25 End Ring SS 410 AS PER IS:1570 PART (V) 2
26 Upper Flange MS WITH CED Coating 1
27 Stator Circlip Spring Steel EN42J 1
28 O'Ring Nitrile Rubber 2
29 Upper Cover CI FG 200 AS PER IS:210 1
30 Grommet Nitrile Rubber 1
31 Cable Clip SS 410 AS PER IS:1570 PART (V) 1
32 Cable Electrograde Copper + PVC 3 Meter
33 Upper Cover Jacket SS 304 1
34 Sand Guard Nitrile Rubber + MS 1
35 Sand Guard Cover SS 410 AS PER IS:1570 PART (V) 1
36 Oil Seal Nitrile Rubber 2
37 Stud (M12) SS 304 4
38 Mechanical Seal Carbon + Ceramic 1
39 1/4" BSP Drain Plug with O'Ring Brass + Nitrile Rubber 1
40 Rotor Circlip Spring Steel EN42J 1
41 Gasket Polytetrafluoroethylene (PTFE) 2
42 Bolt (CSK) (M5) SS 304 3
43 Grub Screw (M5) SS 304 2
44 SCK Screw (M5) SS 410 AS PER IS:1570 PART (V) 4
45 Screw (M5) SS 410 AS PER IS:1570 PART (V) 2
46 O'Ring Nitrile Rubber 4
47 O'Ring Nitrile Rubber 2
48* Revolving Plate Key SS 410 AS PER IS:1570 PART (V) 1
49* Wooden Stick Chill Wood 24
50* Slot Paper EM6 24
51* Allen Bolt (M8) SS 304 4
Sr. No. Part Description MOC Qty.
1 SCK Screw (M5) SS 410 AS PER IS:1570 PART (V) 6
2 Motor Base Cover SS 304 1
3 Diaphragm Spring SS 202 1
4 Diaphragm Spring Cap PVC 1
5 Diaphragm Nitrile Rubber 1
6 O'Ring Nitrile Rubber 4
7 Allen Bolt (M10) SS 304 4
8 Threaded Rocker (M22) SS 410 AS PER IS:1570 PART (V) 1
9 Motor Base Jacket SS 304 1
10 Motor Base CI FG 200 AS PER IS:210 1
11 Gasket Polytetrafluoroethylene (PTFE) 2
12 Thrust Bearing CI FG 260 AS PER IS:210 + SS 420 1
13 Revolving Plate CI FG 260 AS PER IS:210 + Carbon 1
14 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
15 Bolt (CSK) (M5) SS 304 3
16 Lower Housing CI FG 200 AS PER IS:210 1
17 Lower Flange MS WITH CED Coating 1
18 Winding Cap PVC 2
19 Rotor Circlip Spring Steel EN-42J 1
20 Revolving Plate Key SS 410 AS PER IS:1570 PART (V) 1
21 Rotor Shaft SS 420 HT UP TO 450SL / SS 431 ABOVE 450SL 1
22 Balancing Ring CI FG 200 AS PER IS:210 2
23 Grub Screw (M5) SS 304 2
24 Copper Ring Electro Grade Copper 8
25 Rotor Stamping CRNO M47/HYBRID 50SP660 1
26 Stator Tube SS 304 1
27 Stator End Ring SS 410 AS PER IS:1570 PART (V) 2
28 Upper Flange MS WITH CED Coating 1
29 Stator Circlip Spring Steel EN-42J 1
30 O'Ring Nitrile Rubber 2
31 Carbon Bush Sintered Impregnated Carbon 4
32 Upper Housing CI FG 200 AS PER IS:210 1
33 Mechanical Seal Carbon + Ceramic 1
34 Upper Cover CI FG 200 AS PER IS:210 1
35 O'Ring Nitrile Rubber 4
36 Allen Bolt (M8) SS 304 4
37 Cable Electrograde Copper + PVC 3 Meter
38 Grommet Nitrile Rubber 1
39 Cable Clip SS 410 AS PER IS:1570 PART (V) 1
40 Screw (M5) SS 410 AS PER IS:1570 PART (V) 2
41 Upper Cover Jacket SS 304 1
42 1/4" BSP Drain Plug with O'Ring Brass + Nitrile Rubber 1
43 Oil Seal Nitrile Rubber 2
44 Sand Guard Cover SS 410 AS PER IS:1570 PART (V) 1
45 Sand Guard Nitrile Rubber + MS 1
46 Stud (M10) SS 304 4
47 Stator Stamping with End Lamination CRNO M47/HYBRID 50SP660 1
48* Copper Rod Electro Grade Copper 30
49* Winding Wire Polywrap —
50* Wooden Stick Chill Wood 24
51* Slot Paper EM6 24

NOTE: ITEMS NOT SHOWN IN DRAWING
