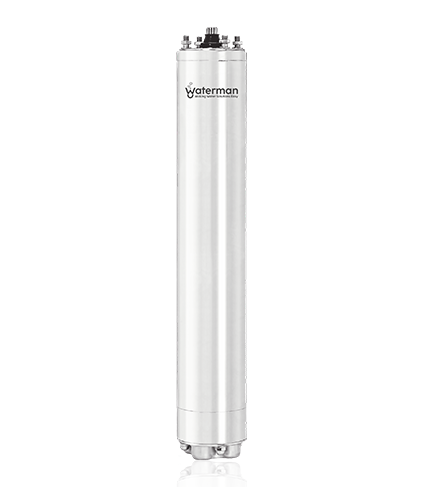

4” Single Piece SS Cladding Design Motor

4” Single Piece SS Cladding Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body: SS304
  • Stator Stamping: Electrical Grade Silicon Steel
  • Thrust Bearing: SS420 Segment With Carbon Plate
  • Rotor Shaft: SS420 / SS431
  • Bush: GM LTB4
  • Seal: Nitrile Rubber
  • Winding Wire: Polywrap Double Coated Copper Wire
  • Upper & Lower Bearing Housing: CI FG 200 With CED Coating Covered With SS 304 Jacket
  • Rewindable
  • Degree of Protection: IP 68
  • Max Water Temperature: 35° C
  • Nos. of Start per Hour: Max 20 at regular intervals
  • Voltage Variation: +6% / -10% at rated voltage
  • Motor Cable Length: 3.0 meters (3 core)
  • Mounting: NEMA Standards Vertical
  • Power Range:
    • Single Phase: 0.37 kW – 2.2 kW
    • AC Single Phase Operating Voltage Band: 180-240 V, 50Hz
    • Three Phase: 0.75 kW – 7.5 kW
    • AC Three Phase Operating Voltage Band: 300-415 V, 50Hz
  • Speed: 2800 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
Model kW HP Motor Length (mm)
W4SP0005H5SSCL 0.37 0.5 441.5
W4SP0007H5SSCL 0.55 0.75 481.5
W4SP0010H5SSCL 0.75 1 481.5
W4SP0015H5SSCL 1.1 1.5 511.5
W4TP0020H5SSCL 1.5 2 571.5
W4TP0030H5SSCL 2.2 3 646.5
W4TP0040H5SSCL 3 4 716.5
W4TP0050H5SSCL 3.7 5 716.5
W4TP0075H5SSCL 5.5 7.5 846.5
W4TP0100H5SSCL 7.5 10 971.5

NOTE: W4-4" MOTOR, SP-SINGLE PHASE, TP-THREE PHASE, SSCL-STAINLESS STEEL CLADDING

Sr. No. Part Description MOC Qty.
1 Motor Base CI FG 200 AS PER IS:210 1
2 Cover for Motor Base SS 304 1
3 Diaphragm Nitrile Rubber 1
4 Jacket for Lower Housing SS 304 1
5 Thrust Bearing SS 420 1
6 Revolving Plate CI + Carbon 1
7 Lower Housing CI FG 200 AS PER IS:210 1
8 Counter Thrust Ring PVC 1
9 Stator Circlip Spring Steel 2
10 Lower Flange MS with CED Coating 1
11 Lower Collar MS 1
12 Stator Tube SS 304 1
13 Stator Stamping Stack CRNO M47/50SP660 1
14 Rotor Stamping Stack CRNO M47/50SP660 1
15 Copper Ring Electro Grade Copper 8
16 Balancing Ring CI FG 200 AS PER IS:210 3
17 Upper Collar MS 1
18 Bush GM LTB-4 4
19 Upper Housing CI FG 200 AS PER IS:210 1
20 Upper Flange MS with CED Coating 1
21 Oil Seal Nitrile Rubber 2
22 Upper Housing Cover SS 304 1
23 Oil Seal Cover SS 410 AS PER IS:1570 (V) 1
24 Stud (M8) SS 304 4
25 Sand Guard Nitrile Rubber 1
26 Drain Plug (1/4" BSP) with O-Ring Brass 2
27 Stud (M6) SS 304 4
28 Nut (M6) SS 304 4
29 Washer (M6) SS 304 4
30 O'Ring Nitrile Rubber 4
31 Rotor Shaft SS 420 H/T/SS 431 1
32 Rotor Circlip Spring Steel 1
33* Revolving Plate Key SS 410 AS PER IS:1570 (V) 1
34* Wooden Stick Chill Wood 24
35* Copper Rod Electro Grade Copper 22
36* Allen Bolt (M6) SS 304 3
37* Grub Screw (M5) SS 202 1
38* Motor Cap PVC 1
39* Motor Winding Cap PVC 2
40* Cable -- 3 Meter
41* Winding Wire Copper + Polywrap --
42* End Lamination MS 2
43* Grommet Nitrile Rubber 1
44* Cable Clip SS 304 1
45* Screw (M5) SS 304 2

NOTE: ITEMS NOT SHOWN IN DRAWING

Sr. No. Part Description MOC Qty.
1 Screw With Washer (M5) SS 304 3
2 Motor Base Plate SS 304 1
3 Diaphragm Nitrile Rubber 1
4 Nut (M6) SS 304 3
5 Flat Washer (M6) SS 304 3
6 O'Ring Nitrile Rubber 5
7 Stud (M6) SS 304 3
8 Motor Rocker (M10) SS 410 AS PER IS:1570 (V) 1
9 Motor Base CI FG 200 AS PER IS:210 1
10 Thrust Bearing SS 420 1
11 Revolving Plate CI FG 260 + Carbon 1
12 Counter Thrust Ring PVC 1
13 Rotor Circlip Spring Steel EN42-J 1
14 Revolving Plate Key SS 410 AS PER IS:1570 (V) 1
15 Lower Housing CI FG 200 AS PER IS:210 1
16 Bearing Bush GM-LTB-4 4
17 Stator Circlip Spring Steel EN42-J 2
18 Lower Flange MS with CED Coating 1
19 Stator Collar MS 2
20 Stator Tube SS 304 1
21 Rotor Shaft SS 420 H/T 1
22 Balancing Ring CI FG 200 AS PER IS:210 1
23 Copper Ring Electro Grade Copper 8
24 Rotor Stamping 50SP660 1
25 Upper Flange MS with CED Coating 1
26 Upper Housing CI FG 200 AS PER IS:210 1
27 Oil Seal Nitrile Rubber 2
28 Oil Seal Cover SS 410 AS PER IS:1570 (V) 1
29 Sand Guard Nitrile Rubber 1
30 Grommet Nitrile Rubber 1
31 Cable Clip SS 410 AS PER IS:1570 (V) 1
32 Screw (M5) SS 304 2
33 Drain Plug (5/16" BSW) Brass 3
34 Allen Bolt (M6) SS 304 2
35 Stud (M8) SS 304 3
36* Copper Rod Electro Grade Copper 14
37* Stator Stamping 50SP660 1
38* Winding Cap PVC 2
39* Cable -- 3 Meter
40* Coupling Key SS 410 AS PER IS:1570 (V) 1
41* Wooden Stick Wooden 18
42* Grub Screw (M5) SS 304 1
43* Winding Wire Copper + Polywrap --

Note: "Items Not Shown In Drawing
