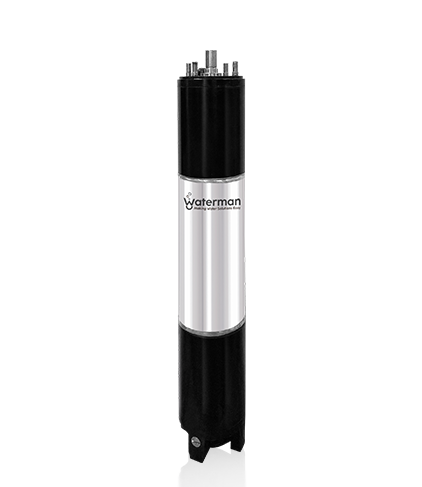

4” Three Piece Turbo Type CI Design Motor

4” Three Piece Turbo Type CI Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment With Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : GM LTB4
  • Seal : Nitrile Rubber
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper & Lower Bearing Housing : SS304 IC
  • Rewindable
  • Degree of protection : IP 68
  • Max water temperature : 35° C
  • Nos. of Start per Hour : Max 20 at regular intervals.
  • Voltage variation : +6% / -10% at rated voltage.
  • Motor cable length : 3.0 meters (3 core)
  • Mounting : NEMA standards Vertical
  • Power Range :
    • Single Phase : 0.37 kW–2.2 kW
    • AC Single Phase Operating Voltage Band : 180–240 V , 50HZ
    • Three Phase : 0.75 kW–7.5 kW
    • AC Three Phase Operating Voltage Band : 300–415 V , 50HZ
  • Speed : 2800 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
Model KW HP Motor Length (mm)
W4SP0005H5CITR 0.37 0.5 512
W4SP0007H5CITR 0.55 0.75 552
W4SP0010H5CITR 0.75 1 552
W4TP0010H5CITR 0.75 1 552
W4SP0015H5CITR 1.1 1.5 582
W4TP0015H5CITR 1.1 1.5 582
W4SP0020H5CITR 1.5 2 642
W4TP0020H5CITR 1.5 2 642
W4SP0030H5CITR 2.2 3 717
W4TP0030H5CITR 2.2 3 717
W4TP0040H5CITR 3 4 787
W4TP0050H5CITR 3.7 5 787
W4TP0075H5CITR 5.5 7.5 917
W4TP0100H5CITR 7.5 10 1042

NOTE: W4-4" MOTOR, SP-SINGLE PHASE, TP-THREE PHASE, CITR-CAST IRON TURBO TYPE (OPEN WINDING MOTOR)

Sr. No. Part Description MOC Qty.
1 Motor Base CI FG 200 AS PER IS:210 1
2 Rubber Cup Nitrile Rubber 1
3 Allen Bolt (M6) SS 304 3
4 Washer (M6) SS 304 4
5 O’Ring Nitrile Rubber 1
6 Motor Base Plate CI FG 200 AS PER IS:210 1
7 Rocker (M18) SS 410 AS PER IS:1570 (V) 1
8 Thrust Bearing CI + Carbon 1
9 Revolving Plate CI + Carbon 1
10 Lower Housing CI FG 200 AS PER IS:210 1
11 Lower Extension CI FG 200 AS PER IS:210 1
12 Motor Winding Cap PVC 2
13 Bush GM LTB-4 4
14 Winding Wire Polywrap + BOPP ---
15 Stator End Ring CI FG 200 AS PER IS:210 2
16 Balancing Ring CI FG 200 AS PER IS:210 2
17 Copper Ring Electro Graded Copper 8
18 Stator Tube SS 304 1
19 Stator Stamping CRNO M47/50SDP660 ---
20 Rotor Stamping CRNO M47/50SDP660 ---
21 Rotor Shaft SS 410 AS PER IS:1570 (V)/SS 431 1
22 Upper Extension CI FG 200 AS PER IS:210 1
23 Cable Electro Grade Copper + PVC 3 MTR.
24 Upper Housing CI FG 200 AS PER IS:210 1
25 Cable Grommet Nitrile Rubber 1
26 Motor Cable Clip SS 304 1
27 Screw (M5) SS 304 2
28 Oil Seal Cover SS 410 AS PER IS:1570 (V) 1
29 Sand Guard Nitrile Rubber + MS 1
30 Oil Seal Nitrile Rubber 2
31 Allen Bolt (M6) SS 304 3
32 Drain Plug (With O’Ring (1/8” BSP)) Brass + Nitrile Rubber 1
33 Stud (M8) SS 304 4
34 Copper Rod Electro Graded Copper 22
35 Allen Bolt (M6) SS 304 4
36 Rivet for Counter Thrust Ring Nickle 2
37 Counter Thrust Ring Teflon 1
38 Spring Spring Steel 1
39 Revolving Plate Key SS 410 AS PER IS:1570 (V) 1
40* Grub Screw (M5) SS 304 2
41* Wooden Stick Wood 24

NOTE: "ITEMS NOT SHOWN IN DRAWING

Sr. No. Part Description MOC Qty.
1 Stud (M8) SS 304 4
2 Allen Bolt (M6) SS 304 3
3 O'Ring Nitrile Rubber 7
4 Sand Guard Nitrile Rubber + MS 1
5 Oil Seal Cover SS 410 AS PER IS:1570 (V) 1
6 Oil Seal Nitrile Rubber 2
7 Screw (M5) SS 304 2
8 Motor Cable Clip SS 304 1
9 Cable Grommet Nitrile Rubber 1
10 Upper Housing CI FG 200 AS PER IS:210 1
11 Bush GM LTB-4 4
12 Upper Extension CI FG 200 AS PER IS:210 1
13 Motor Winding Cap PVC 2
14 Stator End Ring CI FG 200 AS PER IS:210 2
15 Stator Stamping CRNO M47/50SDP660 ---
16 Stator Tube SS 304 1
17 Rotor Shaft SS 410 AS PER IS:1570 (V)/SS 431 1
18 Grub Screw (M5) SS 304 2
19 Balancing Ring CI FG 200 AS PER IS:210 2
20 Copper Ring Electro Graded Copper 8
21 Rotor Stamping CRNO M47/50SDP660 ---
22 Revolving Plate Key SS 410 AS PER IS:1570 (V) 1
23 Rotor Circlip Spring Steel 1
24 Lower Extension CI FG 200 AS PER IS:210 1
25 Lower Housing CI FG 200 AS PER IS:210 1
26 Drain Plug with O'Ring (1/8” BSP) Brass + Nitrile Rubber 1
27 Allen Bolt (M6) SS 304 4
28 Counter Thrust Ring Teflon 1
29 Rivet for Counter Thrust Ring Nickle 2
30 Revolving Plate CI + Carbon 1
31 Thrust Bearing CI FG 260 + SS 420 1
32 Motor Base Plate CI FG 200 AS PER IS:210 1
33 Rocker (M18) SS 410 AS PER IS:1570 (V) 1
34 Rubber Cup Nitrile Rubber 1
35 Motor Base CI FG 200 AS PER IS:210 1
36 Allen Bolt (M6) SS 304 3
37 Washer (M6) SS 304 4
38* Winding Wire Polywrap + BOPP ---
39* Cable Electro Grade Copper + PVC 3 MTR.
40* Copper Rod Electro Graded Copper 24
41* Wooden Stick Wood 24

NOTE: "ITEMS NOT SHOWN IN DRAWING
