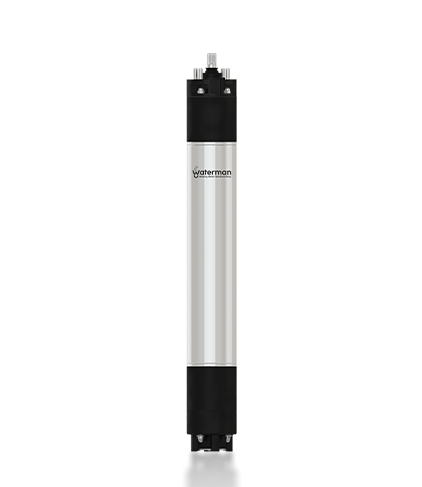

6” Three Piece Turbo Type CI Design Motor

6” Three Piece Turbo Type CI Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment With Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : Sintered Impregnated Carbon
  • Seal : Nitrile Rubber + Carbon + Ceramic + SS 304
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper & Lower Bearing Housing , Connecting Piece : CI FG 200 With CED Coating
  • Rewindable
  • Degree Of Protection : IP 68
  • Max Water Temperature : 35° C
  • Nos. Of Start Per Hour : Max 20 At Regular Intervals
  • Voltage Variation : +6% / -10% At Rated Voltage
  • Motor Cable Length : 3.0 Meters (3 Core)
  • Mounting : NEMA Standards Vertical
  • Power Range :
    • Three Phase : 2.2KW–37KW
    • AC Three Phase Operating Voltage Band : 300–415 V , 50HZ
  • Speed : 2900 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
  • De-Watering
  • Fire Fighting
Model KW HP Motor Length (mm)
W6TP0030H5CITR 2.2 3 553.9
W6TP0040H5CITR 2.9 4 573.9
W6TP0050H5CITR 3.7 5 598.9
W6TP0060H5CITR 4.4 6 633.9
W6TP0075H5CITR 5.5 7.5 683.9
W6TP0100H5CITR 7.5 10 698.9
W6TP0125H5CITR 9.3 12.5 723.9
W6TP0150H5CITR 11 15 773.9
W6TP0175H5CITR 13 17.5 813.9
W6TP0200H5CITR 15 20 903.9
W6TP0250H5CITR 18.5 25 973.9
W6TP0300H5CITR 22 30 1053.9
W6TP0350H5CITR 26 35 1103.9
W6TP0400H5CITR 30 40 1128.9
W6TP0500H5CITR 37 50 1248.9

NOTE: W6-6" MOTOR, TP-THREE PHASE, CITR-CAST IRON TURBO TYPE (OPEN WINDING)

Sr. No. Part Description MOC Qty.
1 Bolt (M5) SS 304 6
2 Motor Base Plate SS 410 As Per IS:1570 Part (V) 1
3 Diaphragm Nitrile Rubber 1
4 Motor Base CI FG 200 As Per IS:210 1
5 Diaphragm Spring SS 202 1
6 Spring Cover PVC 1
7 Threaded Rocker SS 410 As Per IS:1570 Part (V) 1
8 Revolving Plate CI FG 200 As Per IS:210 + Carbon 1
9 Thrust Bearing CI FG 200 As Per IS:210 + SS 420 1
10 Counter Thrust Ring PVC 1
11 Lower Housing CI FG 200 Asper IS:210 1
12 Carbon Bush Sintered Impregnated Carbon 4
13 Balancing Ring CI FG 200 Asper IS:210 2
14 Lower End Ring SS 410 As Per IS:1570 Part (V) 1
15 Rotor Shaft SS 420 H/T Up To 450SL SS 431 Above 450SL 1
16 End Lamination MS 2
17 Rotor Stamping CRNO M47/50SP660 1
18 Stator Stamping CRNO M47/50SP660 1
19 Stator Tube SS 304 1
20 Upper End Ring SS 410 As Per IS:1570 Part (V) 1
21 Upper Housing CI FG 200 As Per IS:210 1
22 Grommet (Long) Nitrile Rubber 1
23 Connecting Piece CI FG 200 As Per IS:210 1
24 Mechanical Seal Carbon + Ceramic 1
25 Oil Seal Nitrile Rubber 1
26 Sand Guard Cover SS 410 As Per IS:1570 Part (V) 1
27 Sand Guard Nitrile Rubber 4
28 Stud (M12) SS 304 4
29 1/4" BSP Drain Plug With O-Ring Brass + Nitrile Rubber 3
30 Upper T-Bolt MS With CED Coating 4
31 Rotor Circlip Spring Steel 1
32 Grommet Nitrile Rubber 1
33 Copper Ring Electro Grade Copper 8
34 Copper Rod Electro Grade Copper 1
35 Dome Nut (M10) SS 202 4
36 Washer (M10) SS 202 4
37 O-Ring Nitrile Rubber 8
38 Revolving Plate Key SS 410 As Per IS:1570 Part (V) 1
39 Grub Screw (M5) SS 304 2
40 Cable Electrograde Copper + PVC 3 Meter
41 Winding Wire Polywrap 1
42 Wooden Stick Chill Wood 24
43 Slot Paper EM6 24
44 Close Grommet Nitrile Rubber 1

NOTE: "ITEMS NOT SHOWN IN DRAWING

SR. NO. PART DESCRIPTION MOC QTY.
1 BOLT (M5) SS 304 6
2 MOTOR BASE PLATE SS 410 AS PER IS:1570 PART (V) 1
3 DIAPHRAGM SPRING SS 202 1
4 SPRING COVER PVC 1
5 DIAPHRAGM NITRILE RUBBER 1
6 DOME NUT (M10) SS 202 8
7 WASHER (M10) SS 202 8
8 O'RING NITRILE RUBBER 8
9 1/4" BSP DRAIN PLUG WITH O'RING BRASS + NITRILE RUBBER 3
10 MOTOR BASE CI FG 200 AS PER IS:210 1
11 THREADED ROCKER (M22) SS 410 AS PER IS:1570 PART (V) 1
12 LOWER T-BOLT MS WITH CED COATING 4
13 THRUST BEARING CI FG 200 AS PER IS:210 + SS 420 1
14 REVOLVING PLATE CI FG 200 AS PER IS:210 + CARBON 1
15 COUNTER THRUST RING PVC 1
16 LOWER HOUSING CI FG 200 ASPER IS:210 1
17 CARBON BUSH SINTERED IMPREGNATED CARBON 4
18 ROTOR CIRCLIP SPRING STEEL 1
19 REVOLVING PLATE KEY SS 410 AS PER IS:1570 PART (V) 1
20 ROTOR SHAFT SS 420 H/T UP TO 450SL 1
21 SS 431 ABOVE 450SL 1
22 BALANCING RING CI FG 200 ASPER IS:210 2
23 COPPER RING ELECTRO GRADE COPPER 8
24 ROTOR STAMPING CRNO M47/50SP660 1
25 LOWER END RING SS 410 AS PER IS:1570 PART (V) 1
26 STATOR TUBE SS 304 1
27 STATOR STAMPING CRNO M47/50SP660 1
28 UPPER T-BOLT MS WITH CED COATING 4
29 UPPER HOUSING CI FG 200 AS PER IS:210 1
30 MECHANICAL SEAL CARBON + CERAMIC 1
31 GROMMET (LONG) NITRILE RUBBER 1
32 GROMMET NITRILE RUBBER 1
33 CLOSE GROMMET NITRILE RUBBER 1
34 CONNECTING PIECE CI FG 200 AS PER IS:210 1
35 OIL SEAL NITRILE RUBBER 1
36 SAND GUARD COVER SS 410 AS PER IS:1570 PART (V) 1
37 SAND GUARD NITRILE RUBBER 1
38 STUD (M12) SS 304 4
39 COPPER ROD ELECTRO GRADE COPPER 1
40 GRUB SCREW (M5) SS 304 2
41 CABLE ELECTROGRADE COPPER + PVC 3 METER
42 WINDING WIRE POLYWRAP 1
43 WOODEN STICK CHILL WOOD 24
44 SLOT PAPER EM6 24

NOTE: ITEMS NOT SHOWN IN DRAWING
