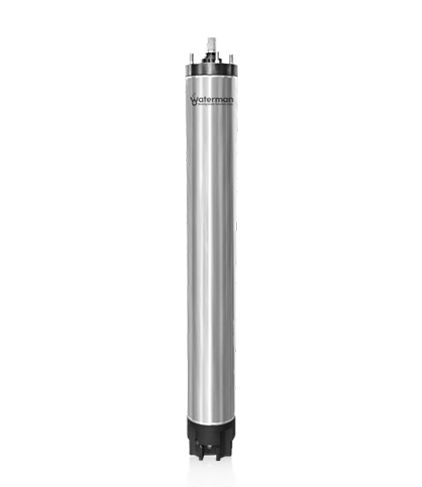

6” Single Piece CI Design Motor

6” Single Piece CI Design Motor

Make An Inquiry Download Catalogue
  • Product Specification
  • Product Application
  • Cross Sectional View
  • Exploaded View

Product Specification And Material Of Consutruction:

  • Motor Body : SS304
  • Stator Stamping : Electrical Grade Silicon Steel
  • Thrust Bearing : SS420 Segment with Carbon Plate
  • Rotor Shaft : SS420 / SS431
  • Bush : Sintered Impregnated Carbon
  • Seal : Nitrile Rubber + Carbon + Ceramic + SS 304
  • Winding Wire : Polywrap Doublecoated Copper Wire
  • Upper & Lower Bearing Housing : CI FG 200 with CED Coating
  • Rewindable
  • Degree of Protection : IP 68
  • Max Water Temperature : 35° C
  • Nos. of Start per Hour : Max 20 at regular intervals
  • Voltage Variation : +6% / -10% at rated voltage
  • Motor Cable Length : 3.0 meters (3 core)
  • Mounting : NEMA Standards Vertical
  • Power Range :
    • Three Phase : 2.2 kW – 37 kW
    • AC Three Phase Operating Voltage Band : 300 – 415 V , 50Hz
  • Speed : 2900 RPM
  • Residential Purpose
  • Irrigation
  • Fountains
  • Industrial Water Supply
  • Pressure Boosting Units
  • Gardens & Horticulture
  • Drip & Sprinkler Systems
  • Mining Industries
  • Oil & Gas Industries
  • De-watering
  • Fire Fighting
Model KW HP Motor Length (mm)
W6TP0030H5CI 2.2 3 615.4
W6TP0040H5CI 2.9 4 635.4
W6TP0050H5CI 3.7 5 660.4
W6TP0060H5CI 4.4 6 695.4
W6TP0075H5CI 5.5 7.5 745.4
W6TP0100H5CI 7.5 10 760.4
W6TP0125H5CI 9.3 12.5 785.4
W6TP0150H5CI 11 15 835.4
W6TP0175H5CI 13 17.5 875.4
W6TP0200H5CI 15 20 965.4
W6TP0250H5CI 18.5 25 1035.4
W6TP0300H5CI 22 30 1115.4
W6TP0350H5CI 26 35 1165.4
W6TP0400H5CI 30 40 1310.4
W6TP0500H5CI 37 50 1310.4

NOTE: W4-4" MOTOR, SP-SINGLE PHASE, TP-THREE PHASE, CITR-CAST IRON TURBO TYPE (OPEN WINDING MOTOR)

Sr. No. Part Description MOC Qty.
1 Motor Base Plate SS 410 AS PER IS:1570 PART (V) 1
2 SCK Screw (M5) SS 410 AS PER IS:1570 PART (V) 4
3 Diaphragm Nitrile Rubber 1
4 Motor Base CI FG 200 AS PER IS:210 1
5 Logo Plate SS 304 1
6 Threaded Rocker (16MM) SS 410 AS PER IS:1570 PART (V) 1
7 Thrust Bearing CI FG 260 AS PER IS:210 + SS 420 1
8 Rotor Circlip Spring Steel EN42J 1
9 Revolving Plate CI FG 200 AS PER IS:210 + Carbon 1
10 Lower Housing CI FG 200 AS PER IS:210 1
11 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
12 Lower Flange MS WITH ZINK PLATTED 1
13 Stud (M10) SS 304 4
14 Winding Cap PVC 2
15 Stator Tube SS 304 1
16 Balancing Ring CI FG 200 AS PER IS:210 2
17 Copper Ring Electro Grade Copper 8
18 Stator Stamping with End Lamination CRNO M47/50SDP660 1
19 Rotor Stamping CRNO M47/50SDP660 1
20 Copper Rod Electro Grade Copper 30
21 Rotor Shaft SS 420 HT UP TO 450SL. SS 431 ABOVE 450SL 1
22 Upper Housing CI FG 200 AS PER IS:210 1
23 Carbon Bush Sintered Impregnated Carbon 4
24 End Ring SS 410 AS PER IS:1570 PART (V) 2
25 Upper Flange MS WITH ZINK PLATTED 1
26 Stator Circlip Spring Steel EN42J 1
27 O'Ring Nitrile Rubber 1
28 Mechanical Seal Carbon + Ceramic 1
29 Grommet Nitrile Rubber 1
30 Cable Clip SS 410 AS PER IS:1570 PART (V) 1
31 Cable Electro Grade Copper + PVC 3 Meter
32 Oil Seal Nitrile Rubber 2
33 Sand Guard Cover SS 410 AS PER IS:1570 PART (V) 1
34 Sand Guard Nitrile Rubber + MS 1
35 Allen Bolt (M5) SS 410 AS PER IS:1570 PART (V) 4
36 Allen Bolt (M6) SS 304 3
37 Stud (M12X66) SS 304 4
38 1/8" BSP Central Drain Plug with O'Ring Brass + Nitrile Rubber 1
39 Upper Cover CI FG 200 AS PER IS:210 1
40 Winding Wire Polywrap ---
41 Diaphragm Spring Cap PVC 1
42 Gasket Polytetrafluoroethylene (PTFE) 1
43 Rivet for Logo Plate MS WITH NICKLE/ZINK COATING 2
44 Bolt (CSK) (M5) SS 304 3
45 Grub Screw (M5) SS 304 2
46 O'Ring Nitrile Rubber 1
47 Washer (M10) SS 304 4
48* Cone Nut (M10) SS 304 4
49* Revolving Plate Key SS 410 AS PER IS:1570 PART (V) 1
50* Wooden Stick Chill Wood 24
51* Slot Paper EM6 24

NOTE: "ITEMS NOT SHOWN IN DRAWING

Sr. No. Part Description MOC Qty.
1 Motor Base Plate SS 410 AS PER IS:1570 PART (V) 1
2 SCK Screw (M5) SS 410 AS PER IS:1570 PART (V) 4
3 Done Nut (M10) SS 304 4
4 Washer (M10) SS 304 4
5 Diaphragm Spring SS 202 1
6 O'Ring Nitrile Rubber 4
7 Diaphragm Spring Cap PVC 1
8 Stud (M10) SS 304 4
9 Diaphragm Nitrile Rubber 1
10 Threaded Rocker (M22) SS 410 AS PER IS:1570 PART (V) 1
11 1/4" BSP Drain Plug with O'Ring Brass + Nitrile Rubber 1
12 Motor Base CI FG 200 AS PER IS:210 1
13 Thrust Bearing CI FG 260 AS PER IS:210 + SS 420 1
14 Revolving Plate CI FG 260 AS PER IS:210 + Carbon 1
15 Gasket Polytetrafluoroethylene (PTFE) 2
16 Bolt (CSK) (M5) SS 304 3
17 Counter Thrust Ring Carbon Filled Teflon (CFT) 1
18 Lower Housing CI FG 200 AS PER IS:210 1
19 Carbon Bush Sintered Impregnated Carbon 4
20 O'Ring Nitrile Rubber 2
21 Stator Circlip Spring Steel EN-42J 1
22 Lower Flange MS WITH ZINK PLATTED 1
23 Winding Cap PVC 2
24 Rotor Circlip Spring Steel EN-42J 1
25 Revolving Plate Key SS 410 AS PER IS:1570 PART (V) 1
26 Rotor Shaft SS 420 HT UP TO 450SL SS 431 ABOVE 450SL 1
27 Balancing Ring CI FG 200 AS PER IS:210 2
28 Grub Screw (M5) SS 304 2
29 Copper Ring Electro Grade Copper 8
30 Rotor Stamping CRNO M47/HYBRID 50SP660 1
31 Stator Tube SS 304 1
32 End Ring SS 410 AS PER IS:1570 PART (V) 2
33 Upper Flange MS WITH ZINK PLATTED 1
34 Upper Housing CI FG 200 AS PER IS:210 1
35 Mechanical Seal Carbon + Ceramic 1
36 Upper Cover CI FG 200 AS PER IS:210 1
37 Grommet Nitrile Rubber 1
38 Cable Clip SS 410 AS PER IS:1570 PART (V) 1
39 Cable Electro Grade Copper + PVC 3 Meter
40 Screw SS 410 AS PER IS:1570 PART (V) 2
41 O'Ring Nitrile Rubber 4
42 Allen Bolt (M8) SS 304 4
43 Oil Seal Nitrile Rubber 2
44 Sand Guard Cover SS 410 AS PER IS:1570 PART (V) 1
45 Sand Guard Nitrile Rubber + MS 1
46 Stud (M12) SS 304 4
47 Logo Plate SS 304 1
48 Rivet for Logo Plate MS WITH NICKLE/ZINK COATING 2
49* Stator Stamping with End Lamination CRNO M47/HYBRID 50SP660 1
50* Copper Rod Electro Grade Copper 30
51* Winding Wire Polywrap ---
52* Wooden Stick Chill Wood 24
53* Slot Paper EM6 24

NOTE: ITEMS NOT SHOWN IN DRAWING
